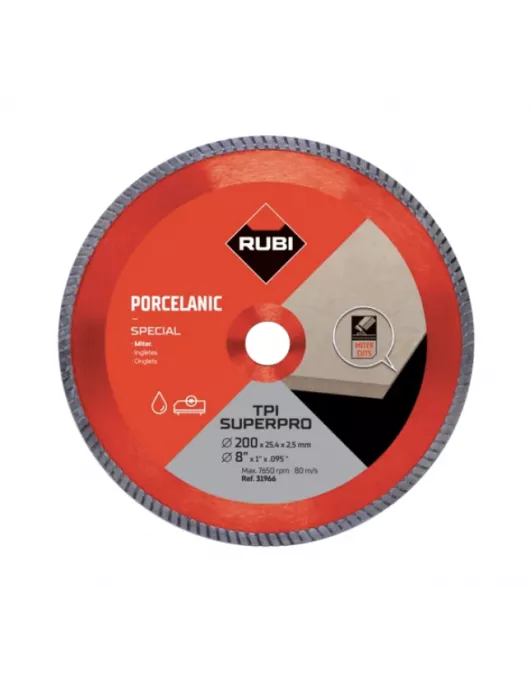

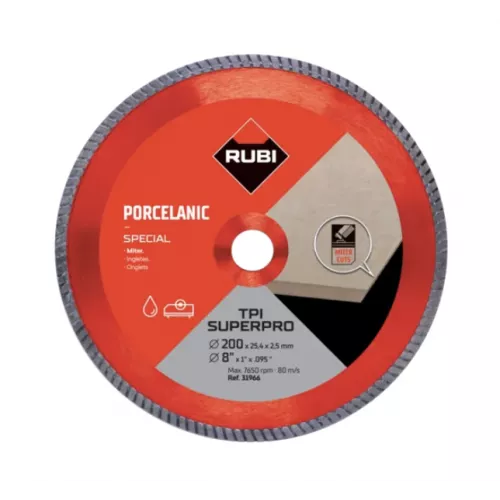

RUBI TPI‑200 SUPERPRO – Turbo Mitre Diamond Blade for Porcelain Stoneware
Specialised Mitre‑Cutting Blade for High‑Precision Porcelain Tile Finishing
The RUBI TPI‑200 SUPERPRO diamond blade is a specialised tool designed exclusively for mitre cutting porcelain stoneware tiles. Engineered for professional ceramic tile installers, the TPI SUPERPRO delivers exceptional stability, cutting speed and finish quality—making it the ideal choice for precision mitres on modern porcelain materials.
Product Overview
The TPI SUPERPRO features a 2.5 mm thick Turbo rim, providing the perfect balance between rigidity, speed and cutting accuracy. This thickness allows installers to perform mitre cuts without the need for additional support plates, although plates can still be used when maximum precision is required.
The Turbo geometry ensures that the original tile edge and enamel are protected, as the blade is designed to leave a controlled margin of 1–2 mm on the visible face of the tile. This prevents chipping and protects the glaze during mitre formation.
The diamond rim is laser‑welded to the steel core, offering maximum durability, safety and long‑term reliability—essential for demanding mitre‑cutting applications.
To maintain peak performance, RUBI recommends using cleaning blocks regularly, especially when the blade is new, after long storage, when changing materials, or whenever cutting speed decreases.
Material Compatibility
Ideal for:
- Porcelain stoneware (BIa)
- High‑hardness porcelain tiles
- Mitre cuts on ceramic and porcelain coverings
Key Features
- SUPERPRO quality level – highest performance for demanding professional work
- Turbo rim for high cutting speed and excellent stability
- 2.5 mm thickness ideal for mitre cutting without additional plates
- Protects tile enamel by maintaining a 1–2 mm safety margin
- Laser‑welded for maximum strength and safety
- Designed exclusively for mitre cutting
- Must be used on cutting tables with appropriate protection systems
- Recommended use of cleaning blocks for optimal performance
RUBI Blade Quality Levels
- PRO – Best price/performance ratio
- SUPERPRO – Enhanced performance for the most demanding jobs
Technical Specifications
Reference30946 (TPI‑200 SUPERPRO)
Blade TypeTPI – Turbo Mitre SUPERPRO
Diameter200 mm
Bore / Inside Diameter25.4 mm
Thickness2.5 mm
Cutting TypeWet
Recommended UseMitre cuts only
Quality LevelSUPERPRO
ConstructionLaser‑welded steel core
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
APS18208 RUBI TPI‑200 SUPERPRO – Turbo Mitre Diamond Blade for Porcelain Stoneware
- Product Code: 31966
RUBI TPI‑200 SUPERPRO – Turbo Mitre Diamond Blade for Porcelain Stoneware
Specialised Mitre‑Cutting Blade for High‑Precision Porcelain Tile Finishing
The RUBI TPI‑200 SUPERPRO diamond blade is a specialised tool designed exclusively for mitre cutting porcelain stoneware tiles. Engineered for professional ceramic tile installers, the TPI SUPERPRO delivers exceptional stability, cutting speed and finish quality—making it the ideal choice for precision mitres on modern porcelain materials.
Product Overview
The TPI SUPERPRO features a 2.5 mm thick Turbo rim, providing the perfect balance between rigidity, speed and cutting accuracy. This thickness allows installers to perform mitre cuts without the need for additional support plates, although plates can still be used when maximum precision is required.
The Turbo geometry ensures that the original tile edge and enamel are protected, as the blade is designed to leave a controlled margin of 1–2 mm on the visible face of the tile. This prevents chipping and protects the glaze during mitre formation.
The diamond rim is laser‑welded to the steel core, offering maximum durability, safety and long‑term reliability—essential for demanding mitre‑cutting applications.
To maintain peak performance, RUBI recommends using cleaning blocks regularly, especially when the blade is new, after long storage, when changing materials, or whenever cutting speed decreases.
Material Compatibility
Ideal for:
- Porcelain stoneware (BIa)
- High‑hardness porcelain tiles
- Mitre cuts on ceramic and porcelain coverings
Key Features
- SUPERPRO quality level – highest performance for demanding professional work
- Turbo rim for high cutting speed and excellent stability
- 2.5 mm thickness ideal for mitre cutting without additional plates
- Protects tile enamel by maintaining a 1–2 mm safety margin
- Laser‑welded for maximum strength and safety
- Designed exclusively for mitre cutting
- Must be used on cutting tables with appropriate protection systems
- Recommended use of cleaning blocks for optimal performance
RUBI Blade Quality Levels
- PRO – Best price/performance ratio
- SUPERPRO – Enhanced performance for the most demanding jobs
Technical Specifications
Reference30946 (TPI‑200 SUPERPRO)
Blade TypeTPI – Turbo Mitre SUPERPRO
Diameter200 mm
Bore / Inside Diameter25.4 mm
Thickness2.5 mm
Cutting TypeWet
Recommended UseMitre cuts only
Quality LevelSUPERPRO
ConstructionLaser‑welded steel core
- Brand: RUBI
- Viewed: 2
- Availability: In stock
Tags: RubiRubi ToolsTPI 200Turbo Mitre BladeSUPERPROPorcelain Mitre CuttingDiamond DiscTile Saw BladeMitre Cut Blade
