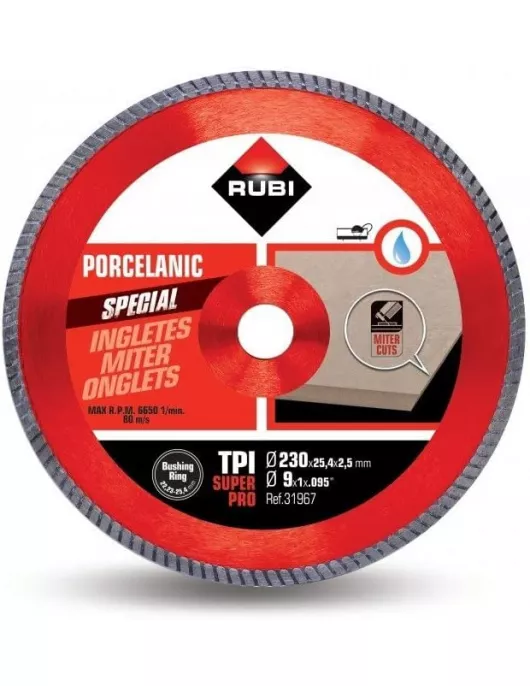

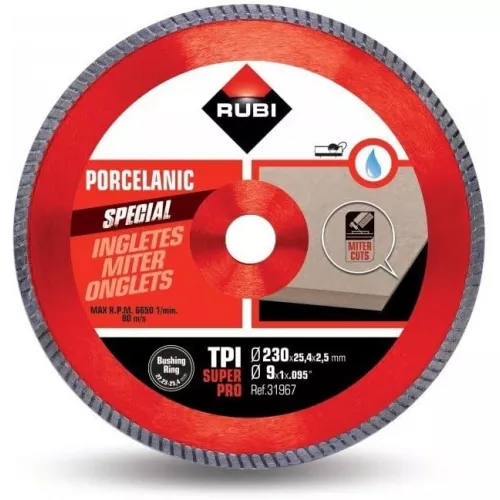

RUBI TPI‑230 SUPERPRO (31967) – Turbo Mitre Diamond Blade for Porcelain Stoneware
High‑Precision Mitre Cutting for Porcelain Tiles (SUPERPRO Quality)
The RUBI TPI‑230 SUPERPRO (31967) diamond blade is a specialised, high‑performance tool designed exclusively for mitre cutting porcelain stoneware tiles. Built for professional ceramic tile installers, the TPI SUPERPRO delivers exceptional stability, cutting speed and finish quality—ideal for achieving flawless mitres on modern porcelain materials.
Product Overview
The TPI SUPERPRO features a 2.5 mm Turbo rim, engineered to provide the perfect balance between rigidity, speed and precision. This thickness allows installers to perform mitre cuts without the need for additional support plates, although plates can still be used when maximum accuracy is required.
The Turbo rim geometry ensures that the tile’s enamel is protected, as the blade is designed to leave a controlled 1–2 mm margin on the visible face of the tile. This prevents chipping and preserves the glaze during mitre formation.
The diamond band is laser‑welded to the steel core, ensuring maximum durability, safety and long‑term reliability—essential for demanding mitre‑cutting applications.
To maintain optimal performance, RUBI recommends using cleaning blocks regularly, especially when the blade is new, after long storage, when changing materials, or whenever cutting speed decreases.
Material Compatibility
Ideal for:
- Porcelain stoneware (BIa)
- High‑hardness porcelain tiles
- Mitre cuts on ceramic and porcelain coverings
Key Features
- SUPERPRO quality level – highest performance for demanding professional work
- Turbo rim for high cutting speed and excellent stability
- 2.5 mm thickness ideal for mitre cutting without additional plates
- Protects tile enamel by maintaining a 1–2 mm safety margin
- Laser‑welded for maximum strength and safety
- Designed exclusively for mitre cutting
- Must be used on cutting tables with appropriate protection systems
- Recommended use of cleaning blocks for peak performance
RUBI Blade Quality Levels
- PRO – Best price/performance ratio
- SUPERPRO – Enhanced performance for the most demanding jobs
Technical Specifications
Reference31967
Blade TypeTPI – Turbo Mitre SUPERPRO
Diameter230 mm
Bore / Inside Diameter25.4 mm
Thickness2.5 mm
Cutting TypeWet
Recommended UseMitre cuts only
Quality LevelSUPERPRO
ConstructionLaser‑welded steel core
